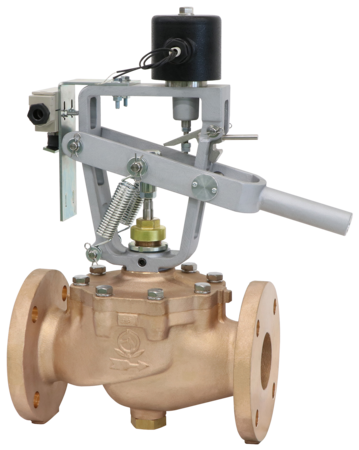

Emergency shutoff valve EIT-3DN type electromagnetic emergency shutoff valve
The operation is valve closing when energized. Restoration is a safer recovery method because the shutoff valve is opened manually after operating the seismic sensor reset switch on the control panel.
Generally, it is attached to the outlet of a water receiving tank or elevated water tank, and in an emergency, the pipeline and the water tank are blocked by a signal from the control panel to secure water in the water tank.
It complies with the "water tank external type emergency shutoff valve" according to the "Comprehensive Seismic Planning Standards for Government Facilities".
- Where to use
- Water tankHigh water tankWater supply branch pipe
Major features
- An electromagnetic emergency shutoff valve compatible with the emergency shutoff system for water tanks.
- The main body is made of stainless steel or bronze, and no red water is generated.
- In combination with the CB type control panel, an emergency shutoff system for the water tank can be constructed.
Water Supply Law Performance Standard Certification Registered Product (E-438) Pressure Leach
specification
| Product code | EIT3DN-WC |
|---|---|
| Valve type | Electric type |
| type | Water supply law performance standard compliant product (Made of copper) |
| Actuation | Valve closed when the seismic sensor operates (valve closed when energized) (After operating the control panel seismic sensor return button) Manually open the shutoff valvePlease contact us for manual valve closing mechanism.We also manufacture valve closed type in case of power failure and AC power supply. Please contact us. |
| Nominal diameter | 50-100 (2-4) |
| Applicable fluid | waterWhen using for water supply equipment, please use EIT-2DN, 3DN type. |
| Fluid temperature | 5-60 ℃ |
| Rated voltage | DC24VWe also manufacture valve closed type in case of power failure and AC power supply. Please contact us. |
| Rated current | 0.92A |
| Protective structure | Dustproof type (Class B insulation structure), for indoor useWhen using outdoors, use a rainproof cover (with TB-12 type terminal box). |
| Ambient temperature | -10-40 ℃ (cannot be frozen) |
| End connection | JIS 10K FF flange |
| Mounting posture | Upright mounting on horizontal piping |
| Rated pressure | 1.0MPa |
| Applicable differential pressure limit | Nominal diameter 125 or less: 0.1 MPa or less Nominal diameter 150: 0.05 MPa or less Nominal diameter 200: 0.04 MPa or less |
| Allowable leakage amount | None |
| Standard accessories | With 1 limit switch (no voltage, control panel open / close display / pump interlock)We also manufacture one additional limit switch (with two). |
| Material body | CAC406 |
| Material Valve body | SUS (with PTFE disc) |
- Please contact us for each city designation type.
Download materials
Frequently Asked Questions and Explanations
Is it possible to change the operating acceleration setting locally?
The operating acceleration cannot be changed in the field. Please contact us when ordering.
Is it possible to extract the operating signal?
EIM-2,3 Leeds is also manufactured with a limit switch (no voltage) as an option. The EIM-7 series has a limit switch (no voltage) on the closed side as standard.
