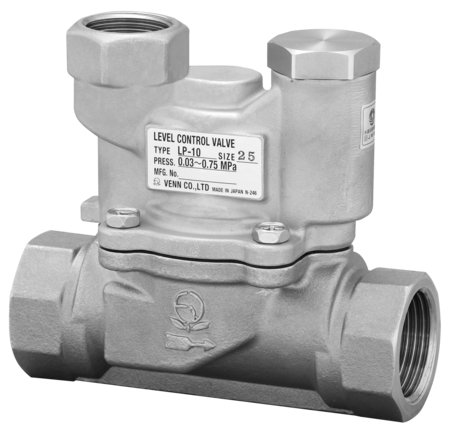

Constant water level valve, vacuum breaker, check valve, check valve LP-10 type constant water level valve (stainless steel)
The attached stainless steel ball tap has a water stop level adjustment mechanism.
Major features
- Both the main body and main parts are made of stainless steel that is resistant to corrosion.
- Equipped with a flow rate adjustment mechanism and a needle for adjusting the valve closing time.
- Since the passage to the pilot pipe is a bypass passage, there is no effect of intermittent water supply from the ball tap due to waves, and quiet and stable water supply is provided.
Water Supply Law Performance Standard Certification Registered Product (E-678) Pressure Leach
specification
| Product code | LP10-D |
|---|---|
| Valve type | Constant water level valve |
| Nominal diameter | 20-50 (3/4-2) |
| Applicable fluid | Tap water / industrial water |
| Fluid temperature | 5-60 ℃ |
| Applicable pressure | 0.03 to 0.75MPa |
| Minimum differential pressure before and after the valve | 0.03MPa |
| End connection | JIS Rc screw |
| Flow rate adjustment mechanism | ─── |
| Valve closing time adjustment needle | ─── |
| Drainage mechanism | ─── |
| Mounting posture | Upright mounting on horizontal piping |
| accessories | Ball tap made of stainless steel with a nominal diameter of 20 (with water stop level adjustment mechanism) |
| Material body | SCS |
| Material parts | SUS |
| Material diaphragm | NBR |
Download materials
Frequently Asked Questions and Explanations
What kind of failure (complaint) does the constant water level valve have?
Please check the details.
Why do you use solenoid valves and ball taps together for pilot piping?
When using a solenoid valve, the water level is detected by the liquid level switch, and the main valve is opened and closed by the operation of the pilot solenoid valve to control the water level.
Is the flow rate adjustment mechanism of the constant water level valve a constant flow valve?
It is not a constant flow valve. The purpose is to regulate the maximum flow rate to prevent the water pressure drop in the water pipes during the daytime when tap water is in high demand.
