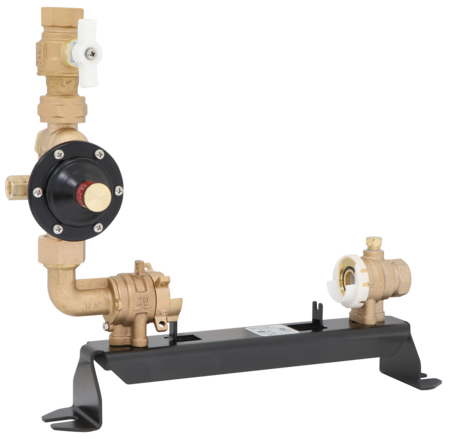

Pressure reducing valve (for water / liquid / door-to-door water supply), constant flow valve, water hammer preventer RMU-5 type meter unit
Since the meter is connected by crimping by operating the handle, it is easy to install and remove.
* Specifications may differ depending on each business entity, so please contact us.
- Where to use
- housing complex
Major features
- Lightweight and compact design considering workability in a narrow pipe shaft.
- A tool-free crimping type that allows you to install and remove the meter by operating the handle.
- It corresponds to the vertical / horizontal piping and the flow direction from the right / left.
- The pedestal part has excellent corrosion resistance.
- A water stop cap can be attached to the water stopcock part.
Water Supply Law Performance Standard Certification Registered Product (M-262) Pressure Resistant Performance Leaching Performance Backflow Prevention Performance Durability Performance
specification
| Product code | RMU5-FHL6 | RMU5-FHL3 |
|---|---|---|
| Valve type | Meter unit | Meter unit |
| type | With pressure reducing valve | With pressure reducing valve |
| Nominal diameter | 20 (3/4) | 20 (3/4) |
| Applicable fluid | Tap water | Tap water |
| Fluid temperature | At normal temperature | At normal temperature |
| Primary side applied pressure | 1.0MPa or less | 1.0MPa or less |
| Secondary adjustment pressure range (set pressure) | 0.20-0.30MPaWe also manufacture 0.11 to 0.23 MPa. (0.20MPaIf the set pressure exceeds 0.3MPa, please contact us.Please contact us for pressures other than the set pressure. ) | 0.20-0.30MPaWe also manufacture 0.11 to 0.23 MPa. (0.25MPaIf the set pressure exceeds 0.3MPa, please contact us.Please contact us for pressures other than the set pressure. ) |
| Pressure reducing valve maximum pressure reducing ratio | 10:01 | 10:01 |
| End connection | JIS Rc 3/4 screw (built-in movable tube end core) | JIS Rc 3/4 screw (built-in movable tube end core) |
| Pressure resistance | 1.75MPaThe water pressure test with the test gag should be performed at 1.75 MPa or less. (Please remove the pressure gauge before proceeding.) | 1.75MPaThe water pressure test with the test gag should be performed at 1.75 MPa or less. (Please remove the pressure gauge before proceeding.) |
| accessories | Union gasket, heat insulation case (self-extinguishing property), test gag, pressure gauge joint (for secondary side, main body installed)The pressure gauge fitting can be used in combination with the opposite plug. | Union gasket, heat insulation case (self-extinguishing property), test gag, pressure gauge joint (for secondary side, main body installed)The pressure gauge fitting can be used in combination with the opposite plug. |
| strainer | 60 mesh (built-in pressure reducing valve) | 60 mesh (built-in pressure reducing valve) |
| Material body | Bronze casting, etc. | Bronze casting, etc. |
| Material pedestal | Steel plate | Steel plate |
| Material Pressure reducing valve | Bronze casting, etc. | Bronze casting, etc. |
- The pressure gauge of the pressure reducing valve can be selected as A type or D type as an option. (The maximum scale of the pressure gauge is 0.5MPa.)
