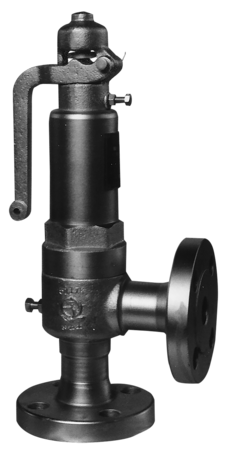

Safety relief valve, safety valve, relief valve SL-9 type safety valve (lift type)
specification
| Product code | SL9-N □The pressure classification symbol is entered in □. | SL9-D □The pressure classification symbol is entered in □. |
|---|---|---|
| format | Lifting ceremony | Lifting ceremony |
| Cap format | With lever | With lever |
| Nominal diameter | 15-32 (1/2-1 1/4) | 15-32 (1/2-1 1/4) |
| Applicable fluid | Steam / air | Steam / air |
| Set pressure range | 0.035-3.0MPa | 0.035-3.0MPa |
| Fluid temperature | -5 to 235 ° CPlease contact us if the fluid temperature is 350 ° C or less. | -5 to 235 ° CPlease contact us if the fluid temperature is 300 ° C or less. |
| End connection | JIS 10, 16, 20, 30K RF flangeWe also manufacture JIS 5, 10, 16, 20K FF / RF, 30K FF, ASME / JPI class 150, and 300 flanges. | JIS 10, 16, 20, 30K RF flangeWe also manufacture JIS 5, 10, 16, 20K FF / RF, 30K FF, ASME / JPI class 150, and 300 flanges. |
| Mounting posture | Upright mounting | Upright mounting |
| Material body | science fiction | SUS |
| Material Valve body | SUSIf the pressure classification exceeds 2.0MPa, the valve body and valve seat stellite are welded. | SUSIf the pressure classification exceeds 2.0MPa, the valve body and valve seat stellite are welded. |
| Material Valve seat | SUSIf the pressure classification exceeds 2.0MPa, the valve body and valve seat stellite are welded. | SUSIf the pressure classification exceeds 2.0MPa, the valve body and valve seat stellite are welded. |
Download materials
Frequently Asked Questions and Explanations
Please tell me the difference between the head type and the full volume type. (Answer details include a video)
There is a difference in the amount of blowout between the lift type and the total amount type. Either one can be used as long as the required amount of blowout is satisfied.
What is the purpose of the safety valve lever? (There is a video in the answer details)
This is to check if the safety valve can be operated and if there is any abnormality (sticking). (Operate when the pressure on the inlet side is 75% or more of the set pressure.)
Please tell me how to select the safety valve with lever and without lever.
As a general rule, select no lever (sealed type) for fluids that adversely affect the surroundings when the safety valve operates, such as flammable / toxic and liquid. If it is necessary to check the operation of the safety valve by operating the lever, select the one with a lever.
