Solenoid valve ED-F type solenoid valve (for liquids and gases)

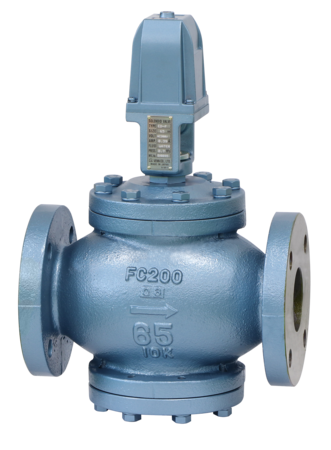

The ED-S type solenoid valve with screw connection and the ED-F type solenoid valve with flange connection are semi-linear solenoid valves that open and close the valve with a powerful electromagnet, and are used when the viscosity is high or the pressure is low. To do.
specification
| Product code | EDF-J | EDF-W | EDF-B | EDF-R |
|---|---|---|---|---|
| type | Metal touch | With disc | Metal touch | With disc |
| Actuation | Energized open | Energized open | Energized open | Energized open |
| Nominal diameter | 15-50 (1/2-2) | 15-50 (1/2-2) | 65/80 (2 1/2/3) | 65/80 (2 1/2/3) |
| Applicable fluid | Metal touch: water / oilWe also manufacture for steam. (Metal touch) ,For fuel oil and light oil, the material of the main body may be specified depending on the destination (Ministry of Land, Infrastructure, Transport and Tourism, Ministry of Defense, etc.), so please check and specify the material. For gasoline, please contact us. , With disc: Light oilFor fuel oil and light oil, the material of the main body may be specified depending on the destination (Ministry of Land, Infrastructure, Transport and Tourism, Ministry of Defense, etc.), so please check and specify the material. For gasoline, please contact us. ·keroseneFor fuel oil and light oil, the material of the main body may be specified depending on the destination (Ministry of Land, Infrastructure, Transport and Tourism, Ministry of Defense, etc.), so please check and specify the material. For gasoline, please contact us.・ Inert gas | Metal touch: water / oilWe also manufacture for steam. (Metal touch) ,For fuel oil and light oil, the material of the main body may be specified depending on the destination (Ministry of Land, Infrastructure, Transport and Tourism, Ministry of Defense, etc.), so please check and specify the material. For gasoline, please contact us. , With disc: Light oilFor fuel oil and light oil, the material of the main body may be specified depending on the destination (Ministry of Land, Infrastructure, Transport and Tourism, Ministry of Defense, etc.), so please check and specify the material. For gasoline, please contact us. ·keroseneFor fuel oil and light oil, the material of the main body may be specified depending on the destination (Ministry of Land, Infrastructure, Transport and Tourism, Ministry of Defense, etc.), so please check and specify the material. For gasoline, please contact us.・ Inert gas | Metal touch: water / oilWe also manufacture for steam. (Metal touch) ,For fuel oil and light oil, the material of the main body may be specified depending on the destination (Ministry of Land, Infrastructure, Transport and Tourism, Ministry of Defense, etc.), so please check and specify the material. For gasoline, please contact us. , With disc: Light oilFor fuel oil and light oil, the material of the main body may be specified depending on the destination (Ministry of Land, Infrastructure, Transport and Tourism, Ministry of Defense, etc.), so please check and specify the material. For gasoline, please contact us. ·keroseneFor fuel oil and light oil, the material of the main body may be specified depending on the destination (Ministry of Land, Infrastructure, Transport and Tourism, Ministry of Defense, etc.), so please check and specify the material. For gasoline, please contact us.・ Inert gas | Metal touch: water / oilWe also manufacture for steam. (Metal touch) ,For fuel oil and light oil, the material of the main body may be specified depending on the destination (Ministry of Land, Infrastructure, Transport and Tourism, Ministry of Defense, etc.), so please check and specify the material. For gasoline, please contact us. , With disc: Light oilFor fuel oil and light oil, the material of the main body may be specified depending on the destination (Ministry of Land, Infrastructure, Transport and Tourism, Ministry of Defense, etc.), so please check and specify the material. For gasoline, please contact us. ·keroseneFor fuel oil and light oil, the material of the main body may be specified depending on the destination (Ministry of Land, Infrastructure, Transport and Tourism, Ministry of Defense, etc.), so please check and specify the material. For gasoline, please contact us.・ Inert gas |
| Fluid temperature | 5-100 ℃ | 5-100 ℃ | 5-100 ℃ | 5-100 ℃ |
| Fluid viscosity | 100cSt or lessWe also manufacture fluid viscosities of 300 cSt or less. | 100cSt or lessWe also manufacture fluid viscosities of 300 cSt or less. | 100cSt or lessWe also manufacture fluid viscosities of 300 cSt or less. | 100cSt or lessWe also manufacture fluid viscosities of 300 cSt or less. |
| Applicable pressure | 0-0.7MPa | 0-0.7MPa | 0-0.7MPa | 0-0.7MPa |
| Minimum differential pressure before and after the valve | 0MPa | 0MPa | 0MPa | 0MPa |
| Allowable leakage amount | Water / oil: 3 g / min or less, air (with disc): 50 mL / min (standard condition) or less | Water / oil: 3 g / min or less, air (with disc): 50 mL / min (standard condition) or less | Water / oil: 3 g / min or less, air (with disc): 50 mL / min (standard condition) or less | Water / oil: 3 g / min or less, air (with disc): 50 mL / min (standard condition) or less |
| Rated voltage | AC100V 50 / 60Hz or AC200V 50 / 60HzPlease contact us for other special voltages. | AC100V 50 / 60Hz or AC200V 50 / 60HzPlease contact us for other special voltages. | AC100V 50 / 60Hz or AC200V 50 / 60HzPlease contact us for other special voltages. | AC100V 50 / 60Hz or AC200V 50 / 60HzPlease contact us for other special voltages. |
| Insulation type | Type B | Type B | Type B | Type B |
| Ambient temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ |
| Protective structure | Dust-proof, drip-proof, indoor use (When using outdoors, protect with a cover, etc.) | Dust-proof, drip-proof, indoor use (When using outdoors, protect with a cover, etc.) | Dust-proof, drip-proof, indoor use (When using outdoors, protect with a cover, etc.) | Dust-proof, drip-proof, indoor use (When using outdoors, protect with a cover, etc.) |
| End connection | JIS 10K FF flange | JIS 10K FF flange | JIS 10K FF flange | JIS 10K FF flange |
| Mounting posture | Upright mounting with coil up on horizontal piping | Upright mounting with coil up on horizontal piping | Upright mounting with coil up on horizontal piping | Upright mounting with coil up on horizontal piping |
| Material body | CAC406For fuel oil and light oil, the material of the main body may be specified depending on the destination (Ministry of Land, Infrastructure, Transport and Tourism, Ministry of Defense, etc.), so please check and specify the material. For gasoline, please contact us.Please contact us for the main body made of SCS. | CAC406For fuel oil and light oil, the material of the main body may be specified depending on the destination (Ministry of Land, Infrastructure, Transport and Tourism, Ministry of Defense, etc.), so please check and specify the material. For gasoline, please contact us.Please contact us for the main body made of SCS. | FCFor fuel oil and light oil, the material of the main body may be specified depending on the destination (Ministry of Land, Infrastructure, Transport and Tourism, Ministry of Defense, etc.), so please check and specify the material. For gasoline, please contact us.Please contact us for the main body made of SCS. | FCFor fuel oil and light oil, the material of the main body may be specified depending on the destination (Ministry of Land, Infrastructure, Transport and Tourism, Ministry of Defense, etc.), so please check and specify the material. For gasoline, please contact us.Please contact us for the main body made of SCS. |
| Material Main part valve body | SUS | SUS | CAC406 | CAC406 |
| Material Main part disc | PTFE | PTFE | PTFE | PTFE |
- Please contact us for the main body made of SCS.
- Please contact us for the main body made of SCPH and SCS.
- For the lead wire connection method, refer to page 366 of the general catalog.
Download materials
Frequently Asked Questions and Explanations
Is there any problem if the solenoid valve is used (energized) with the valve open for a long time?
The solenoid valve coil has a "continuous rating", so there is no problem even if it is used while it is energized.
The coil of the solenoid valve is hot, is that okay? (There is a video in the answer details)
There is no problem even if the coil part is hot. Please check the video explaining the answer in detail.
If the secondary side of the solenoid valve is a rising pipe, does it flow back?
The solenoid valve is closed by the weight of the valve body and the fluid pressure. Therefore, when there is no inlet pressure and a reverse pressure is applied, the valve opens and backflow occurs. In this case, install a check valve on the secondary side of the solenoid valve.
