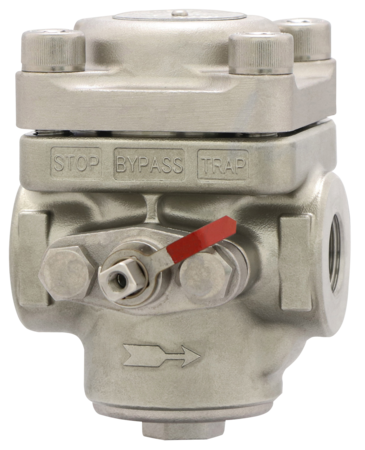

Steam trap, drain separator, silencer, air trap, radiator valve ADB-21 type Steam trap with bypass
By adopting a V-shaped ball, the space between faces is about 38% smaller and the mass is about 40% lighter, making it ideal for assembling equipment with limited space. (Compared to our company)
- Where to use
- Laundry equipmentFood equipment
Major features
- Both the main body and main parts are made of stainless steel.
- Horizontal / vertical (downward exit) / horizontal mounting is free. (Excluding the top lid facing down)
- The "trap + bypass + stop" functions are integrated and can be easily switched with a single tool.
specification
| Product code | ADB21-D |
|---|---|
| Valve type | steam trap |
| format | Disc type |
| Nominal diameter | 15-25 (1/2-1) |
| Applicable fluid | steam |
| Fluid temperature | 184 ℃ or less |
| Applicable pressure | 0.03 to 1.0MPa |
| Maximum continuous emissions | 800L / h |
| End connection | JIS Rc screw |
| Mounting posture | Horizontal / vertical (exit downward) / horizontal mounting free (excluding top lid downward) |
| Material body | SCS |
| Material Valve seat | SUS |
| Material disc | SUS |
| Material ball | SUS |
- We also manufacture a fixed switching lever.
Download materials
Frequently Asked Questions and Explanations
What is a drain?
In steam-related terms, it refers to steam condensed water (a state in which steam has cooled and returned to water).
What is the role of the steam trap?
When the steam cools, it returns to water (drain). If drainage accumulates in the piping and equipment, it may reduce the efficiency of the equipment and cause water hammer, so it is used for the purpose of automatically discharging the generated drainage.
What is the role of the bypass circuit in the steam trap with bypass?
The bypass function is used at the initial stage of ventilation of equipment, etc., and it is used for the purpose of discharging a large amount of air and drain to accelerate the start-up time.
