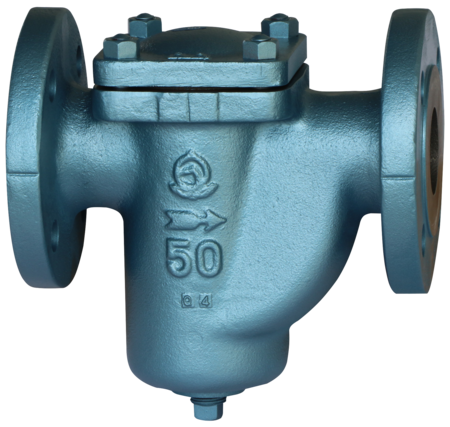

Strainer KU-1 type strainer
KU-1CN type is a nylon coated product that does not easily rust.
specification
| Product code | KU1-G2 | KU1-G |
|---|---|---|
| Valve type | U shape | U shape |
| type | Goods | Goods |
| Nominal diameter | 25-250 (1-10) | 25-250 (1-10) |
| Applicable fluid | waterWhen using it for a water supply device, use the KU-1CN type, which conforms to the performance standards of the Waterworks Law.・ Oil / airWe also manufacture steam (fluid temperature 184 ° C or less). | waterWhen using it for a water supply device, use the KU-1CN type, which conforms to the performance standards of the Waterworks Law.・ Oil / airWe also manufacture steam (fluid temperature 184 ° C or less). |
| Fluid temperature | 90 ° C or lessWe also manufacture steam (fluid temperature 184 ° C or less). | 90 ° C or lessWe also manufacture steam (fluid temperature 184 ° C or less). |
| Applicable pressure | 1.0MPa or less | 1.0MPa or less |
| End connection | JIS 10K RF flangeWe also manufacture sluice valve flanges for waterworks with a nominal diameter of 80 or more. | JIS 10K RF flangeWe also manufacture sluice valve flanges for waterworks with a nominal diameter of 80 or more. |
| Mesh | 60 meshAs for the mesh, we also manufacture only punched holes (punched boards) without mesh lining. | 40, 80, 100 meshAs for the mesh, we also manufacture only punched holes (punched boards) without mesh lining. |
| Tolerant differential pressure | 0.1MPa or lessIf the differential pressure exceeds 0.1MPa, the net may be damaged. Clean the net so that it does not exceed 0.1 MPa. | 0.1MPa or lessIf the differential pressure exceeds 0.1MPa, the net may be damaged. Clean the net so that it does not exceed 0.1 MPa. |
| Painting | Inner surface: rust preventive oil | Inner surface: rust preventive oil |
| Material body | FC | FC |
| Material net | SUS | SUS |
| Material lid | FC | FC |
| Material Net case | CAC406 | CAC406 |
- We also manufacture the KU-1PN type (nominal diameter 50 to 125, epoxy resin powder coating on the inside and outside of the main body) that conforms to the performance standards of the Waterworks Law.
Download materials
Frequently Asked Questions and Explanations
How do you select the strainer mesh?
Originally, it is selected according to the fluid, application, etc. If the mesh is fine, clogging will occur frequently, and if it is coarse, foreign matter will pass through and foreign matter will enter the product, causing malfunction or damage to the equipment.
Is there anything that can be used for vertical piping?
Basically, it can be installed on vertical piping, but please install it so that the flow direction is from top to bottom. (KU and KW types should be used on horizontal piping.)
What are the differences between KY (Y type), KU (U type), and KT (straight type) strainers? (There is a video in the answer details)
Please watch the video of the answer details.
