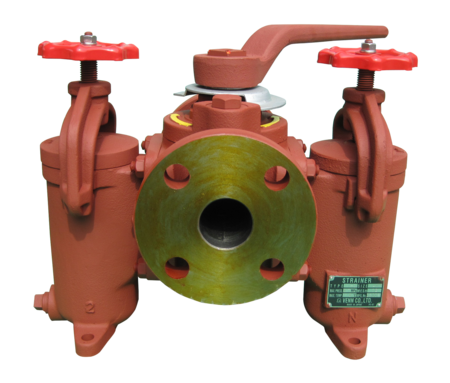

Strainer KW-2 type strainer (double type)
A compound strainer for water and oil. Equipped with filter tubes on the left and right centering on the switching cock, it can be used continuously without interrupting the flow even when cleaning one tube.
specification
| Product code | KW2-G2 | KW2-G |
|---|---|---|
| Valve type | Double-entry | Double-entry |
| Nominal diameter | 15-100 (1/2-4) | 15-100 (1/2-4) |
| Applicable fluid | Water / oil | Water / oil |
| Fluid temperature | 110 ℃ or less | 110 ℃ or less |
| Applicable pressure | 0.7MPa or less | 0.7MPa or less |
| End connection | JIS 10K FF flange | JIS 10K FF flange |
| Mesh | 60 mesh | Nominal diameter 50 or less: 20-200 mesh punch holes (punched plate) Nominal diameter 65 or more: 5 to 200 mesh punch holes (punched plate)Punch holes (punched plates) have a nominal diameter of 25 or less, φ3 x P4, and a nominal diameter of 32 or more, φ6 x P7.5. |
| Tolerant differential pressure | 0.1MPa or lessIf the differential pressure exceeds 0.1MPa, the net may be damaged. Clean the net so that it does not exceed 0.1 MPa. | 0.1MPa or lessIf the differential pressure exceeds 0.1MPa, the net may be damaged. Clean the net so that it does not exceed 0.1 MPa. |
| Material body | FC | FC |
| Material net | SUS | SUS |
