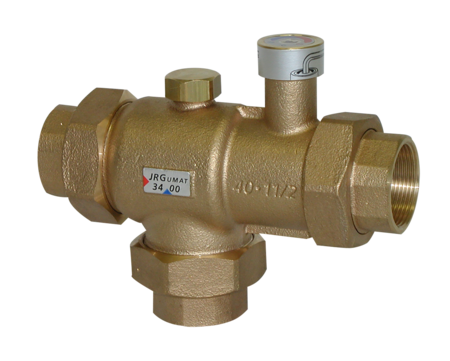

Temperature control valve, mixing valve, temperature on-off valve, hot water supply stop valve JRG3400 type mixing valve
A stable temperature of hot water can be obtained, and it can be used with confidence in equipment that uses a large amount of hot water.
Major features
- You can easily supply hot water just by connecting hot water and water.
- The thermo element has good followability to hot water and pressure fluctuations of water, and hot water is supplied at a stable temperature.
- Both double pipe type (circulation type) and single pipe type can be supported.
- Uses materials with excellent corrosion resistance such as bronze, stainless steel, and resin.
- It is lightweight, compact, has excellent workability, and saves space.
specification
| Product code | JRG3400 □A 3-digit symbol is entered in □ depending on the set temperature and the adjusted temperature range. |
|---|---|
| Valve type | Mixing valve |
| Nominal diameter | 15-50 (1/2-2) |
| Standard set temperature | 40/48/55 ℃ |
| Adjusted temperature range | 30-45 ℃ ・ 36-53 ℃ ・ 45-65 ℃Please contact us for the adjustment temperature range of 20 to 30 ° C. |
| Applicable fluid | Hot water / waterWhen using it for a water supply device, use the JRG3400N type (nominal diameter 15 to 50) that conforms to the performance standards of the Waterworks Law. (See page 211 of the general catalog) |
| Fluid temperature | 80 ℃ or less It is heat resistant to the built-in thermo element. Pay particular attention to the temperature on the hot water side. |
| Applicable pressure | 1.0MPa or less |
| Pressure difference between hot water and water input side | Within 0.05MPa |
| End connection | JIS Rp screw (union fitting) |
| Mounting posture | Horizontal / vertical / horizontal mounting free |
| accessories | Hex wrench for temperature control, heat insulation cover |
| Material body | CAC |
| Material parts | SUS / CAC / resin |
- Nominal diameter 15 does not have a circulating water return port.
- We also manufacture hot water supply stop valves (fluid temperature: 0 to 95 ° C, water supply law performance standard compliant products). (Refer to page 217 of the general catalog)
Download materials
Frequently Asked Questions and Explanations
Is it possible to completely close the fluid?
It works to close, but it cannot be completely closed, resulting in hot or cold water leaks on the secondary side.
Can it be attached to vertical piping?
Horizontal, vertical and horizontal mounting is free. (When installing vertically with a check valve, install it so that the check valve flows in the flow direction from bottom to top.)
